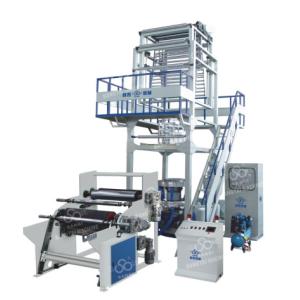

PE High Speed Film Blowing Machine With automatic winder ( CE)
Spec:
|
Model |
SJ-50 |
SJ-55 |
SJ-65 |
|
Diameter of screw |
φ50 |
φ55 |
φ60 |
|
Rcduced diameter of film(mm) |
100-600 |
200-800 |
300-1000 |
|
Single-face Thickness of film(mm) |
0.01-0.1 |
0.01-0.1 |
0.01-0.1 |
|
Max.Extrusion(Kg/h) |
50 |
80 |
100 |
|
L/D |
30:1 |
30:1 |
30:1 |
|
Power of main moto(kw) |
15 |
22 |
37 |
|
Power of Tracion main moto(kw) |
1.5 |
1.5 |
1.5 |
|
Max. Line Speed (m/min) |
100 |
100 |
100 |
|
Heating Power(kw) |
11 |
15 |
20 |
|
Outline diameter(L x W x H) (mm) |
6000 x 1600 x 3800 |
6500 x 2200 x 4700 |
7000 x 2300 x 5200 |
|
Weight(T) |
2.0T |
2.5T |
3.5T |
Description:
Its screw and barrels are made of quality alloy steel which have been nitrized and processed in a precision way. Hence it is sound in hardness, durable in corrosion resistance. The specially-designed screw is of sound quality in plasticizing, which helps increase the production capacity.
Applications:
It is applied to blowing the plastic films like LDPE, HDPE and LLDPE, widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest bags.
Feature :
1. high speed screw and barrel ,bimetallic material
2. automatic rewinder to automatic film cut and roll changer
3. high output
Competitive Advantage:
a. The twenty-seven years experence to manufacture this machine
b. 30years professional engineers service in many countries,
c. Machines with quality guarantee for one year, life-long maintenance.
d. Created honors : The national igh tech-Enterprises, The national torch-planning project commitments to corporate. Famouse trademarks in WENZHOU, Ten pcs provincial new products etc
e. Professional development group continuously improves and upgrades new products and new technologies .
f. Undertake various non-standard machinery, solve the customers' special requirements.
Picture:
